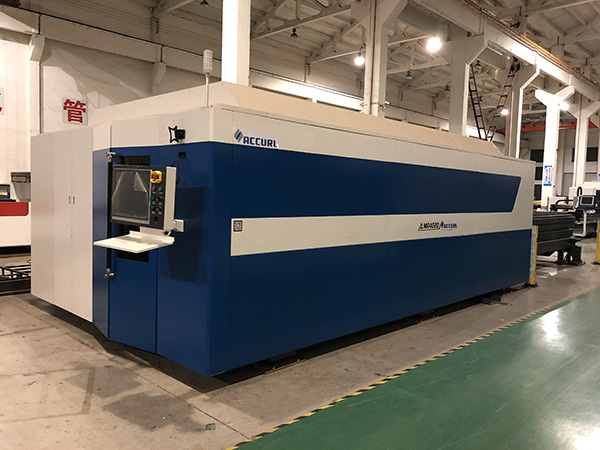

Full Closed Pallet Changer Fiber Laser Pipe and Sheet Metal Cutting Machine


Cutting Speed:28m/mintes
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Cutting
Cutting Thickness:0.1-8mm,1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:DSP
Place of Origin:Jiangsu, China
Model Number:FCSL200B
Certification:CCC, CE, GS, ISO, SGS, UL
Max.laser power:2000W
Wave length:1064nm
Max Cutting Thickness:Stainless≤8mm, Middle Steel≤14mm
Repeat positioning accuracy:0.02mm
Positioning accuracy:0.03mm
cut geometric accuracy:±0.05mm/1000mm
Overall size:4380x2500x1970
Warranty:One Year
Control system:International professional cutting machine dedicated software
Laser cutting head:Original imported from America
After-sales Service Provided:Engineers available to service machinery overseas

Product Description

  • The super high photo-electric conversion efficiency can be up to about 30%. So the machine runs with very low power consumption.
  • Assisted with laser beams of good quality, the focus spot is small, and the cutting seam is very fine.
  • The working efficiency is high, and the quality is good by using double-clad fiber (DCF).
  • The light spot enjoys good quality. And the machine distorts just slightly. Besides, work pieces have even cutting seams.
  • The completely enclosed light path is totally composed of fiber laser and fiber laser units.
  • Fiber laser and fiber laser units are combined together based on cable splicing technology. And the whole light path is enclosed in fiber laser waveguide.
  • No need of mirrors in laser generator. No working gas in laser generator. And no need to maintain laser generator when the machine runs.
  • Fiber optic transmission requires no need of reflector mirrors. The machine saves maintenance costs greatly.

  • The efficiency is very stable and reliable by adopting the diode pump laser module.
  • It’s quite convenient to operate and maintain the machine. No need to adjust the light path with fiber-optic transmission system.
  • With the very long working life, key units can work one hundred thousand hours without maintenance.
  • Our Services



    1). Quality assurance system

    Company organizes the production as per ISO9001:2008 standard. From design control, process control, inspection control to delivery, installed and service, the whole process control. The running of quality system performs quality manual, procedure files, work instruction and related technical and management standard together with standard and regulation layout by company strictly. Quality system realizes whole screw and whole procedure control completely.

    2). Quality assurance procedure for important out-source parts.

    a. Mainly out-sourced parts: control system, cylinder, hydraulic components, motor, pump etc.

    b. After evaluation, select qualified suppliers as business partners.

    c. Purchasing according to plan, purchase contract, quality requirement, technical standard and inspection standard.

    d. Receiving inspection on site either in supplier or our company with related technicians.
