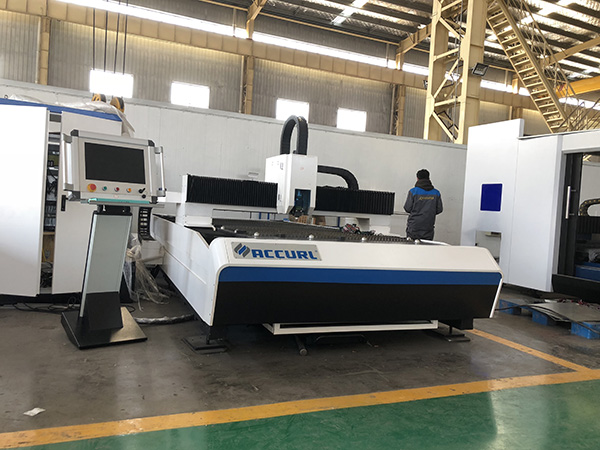

Accurl fiber laser for cutting sheets and sections sized 3000 x 1500 / 6000 mm

Accurl fiber laser for cutting sheets and sections sized 3000 x 1500 / 6000 mm

Specifications


Cutting Speed:25m/min
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Cutting
Condition:New
Cutting Thickness:0.2-6mm
CNC or Not:Yes
Cooling Mode:Air Cooling
Control Software:DSP
Place of Origin:Anhui, China (Mainland)
Brand Name:ACCURL
Certification:CE, ISO, SGS
Max cutting range:600*900mm
Control System:Cypcut
Max Cutting Speed:25m/min
Cooling Way:Water Cooling
Laser Power:500W(Option 200W/300W/400W/1000W/2000W)
Cutting Depth:0.2-6mm
Guide rail:Taiwan HIWIN linear guide rail 30mm
Continuous Working Time:24Hours
Electronic Components:French Schneider
After-sales Service Provided:Engineers available to service machinery overseas

Product Description

Product Application

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
Mainly used for cutting Mild steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminium zinc plate, copper and many kinds of metal materials and so on.

SPECIFICATIONS FOR FIBER LASER CUTTING MACHINE
Working area
600*900mm
Y axis max speed
100m/min
Control System
Cypcut
Z axis max speed
30m/min
Laser head
LASERMECH
Cooling Way
Water Cooling
Guide rail
Taiwan HIWIN linear guide rail 30mm
Min line width
0.1mm
Transmission
Taiwan YYC Gear rack
Power Requirements
380V, 50/60Hz, 16A
Electronic Components
French Schneider
Continuous Working Time
24Hours
Motor
Japanese YASKAWA servo motor
X axis max acceleration
1G
Max Cutting Speed
35m/min
Y axis max acceleration
1G
X axis max speed
65m/min
Laser cutting head
Auto following function

Parameter of metal 300W/500W/750w/1000w/2000w fiber laser cutting machine

Fiber sheet metal laser cutting machine adopts most sophisticated fiber laser, combining self-design Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability with imported high precision and fast speed, linear guide drive. Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity. It is mainly for cutting sheet metal below 6mm in high speed and high precision. Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, alloy steel, copper, titanium and other metal materials' precision cutting. It is widely used in metal products, hardware, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys, advertising and other industries.
Advantage of Fiber laser cutting machine:
1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.

FAQ


 Frequently Asked Questions
1) This is my first time to use this kind of 1325 cnc router is it easy to operate?
There are English manual and guide video showing how to use the machine.
If you still have difficulties operating the machine, we can solve your problems through phone or skype

2) If there is something wrong with the machine after I ordered it, how could I do?
Free parts send to you during machine warranty period if machine went wrong.
Free after-sales service life for machine, please feel free to contact us if something is wrong with your machine.We offer 24 hours on line service each day, free technical support.

3) MOQ?

Our MOQ is 1 set . We could send machine to the port of your country or your factory directly, please inform us your port or your detailed address.
