Specifications
Cutting Speed:72m/min
Graphic Format Supported:AI, DST, DWG, DXF, DXP, LAS
Application:Laser Cutting
Condition:New
Cutting Thickness:6mm
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:cypcut controller
Place of Origin:Anhui, China (Mainland)
Brand Name:ACCURL
Model Number:KJG-150300DT with 800W
Certification:CE, ISO, SGS, UL
Laser type:IPG fiber laser generator from USA
Laser wavelength:1070nm
Laser power output rating:800W
X-axis travel:1500mm
Y-axis travel:3000mm
Working table:Open design, fixed table
Driving mode:Double rack and pinion driving system
Format supported:PLT, DXF, AI etc
Position accuracy:0.05mm
Total Power consumption:10KW
After-sales Service ProvidedEngineers available to service machinery overseas

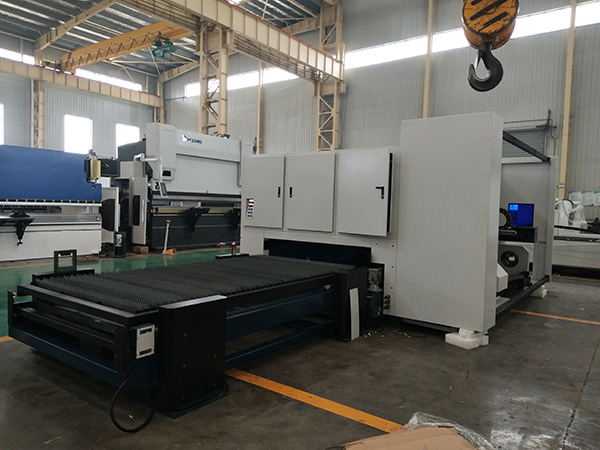

Main Features
1) The Accurl laser cutting machine with the highest precision in China, it can cut small metal bike design with size of half a coin and perfectly cut 6mm mild steel,120 holes can be cut within one minute.
2) 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, to make sure 20 years usage without deformation.
3) Using laser electrical cabinet integration design, cover small area , save space, minimalist design.
4) Scrap car symmetrical design, both sides can clean up the waste; Put machine to the romm has no left and right requirements; Pneumatic lifter device to prevent the material from scratching.
5) Specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel and other kinds of thin metal sheets.1000W can cut 3mm aluminum and 2mm copper.
Fiber Laser Metal Cutting Machine Technical Parameters | |||
Model No. | KJG-150300JH | KJG-150300JH | XJGC-150300JH |
Laser Type | IPG / Coherent / Raycus | ||
Laser Power | 500W | 1000W | 2000W |
Cutting Area | 1500mmX3000mm | ||
Working Table Structure | Fixed working table | Pallet Changer | |
Control System | PMAC full-closed loop servo control | ||
Positioning Accuracy | ±0.04mm | ||
Driving Mode | Double gear rack driving | ||
Idle/Processing Speed | 72m/min / 36m/min | 100m/min / 30m/min | |
Laser Head | Precitec / Golden Laser / Laser Mech | ||
Cooling System | Dual temperature dual control water chiller | ||
Protection System | Open Type | Enclosure protection | |
Format Supported | PLT, DXF, BMP, AI, DST, DWG, etc. | ||
Power Supply | 380V / 220V | ||
Total Power | 7KW / 11KW | 17KW / 8~22KW | |
Floor Space | 5.6m x 3.2m | 9m X 4m | |
Standard Collocation | |||
Size | 4750mm(L) * 2250mm (W) * 1689 (D) |
Weight | 3.2 T |
Packaging Details | 4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport. 3.The outmost is wooden case with fixed formwork. 2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool. 1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time. |
