Quick Details
Condition:New
Place of Origin:Anhui, China (Mainland)
Model Number:Laser-3015-500W
Voltage:380V/220V
Rated Power:220W
Dimension(L*W*H):3700*2280*1400
Weight:1500kg
Certification:CE
Name:Factory Price CNC Fiber Laser Sheet Metal Cutting Machine For Sale
Model:Laser-3015-500W
Color:Blue
Cutting Range:1500*3000mm
Effective cutting length Y Axis:can be extended by your requirements
Laser generator:Raycus
Table:steel structure
Laser Software:CPYCUT
Laser Head:Switzerland Raytools
Laser THC:With
After-sales Service Provided:Overseas service center available
Warranty:one yearne.
Product Description
CNC FIBER LASER CUTTING MACHINE FOR METAL PLATE1.Good Working stability, high frequency interfere effectively plasma,lightweight portable2.Economic benefits,the structure and design is contracted. it adopts humanistic positive man-machineconversation and operate easily3.Cutting has high quality, high effect level, high precision4.Programmable cutting arbitrary shape parts of line and arc5.Dynamic and static graphic display, easy to learn. Can convert CAD file to program file in computer, through USB flash drive transmitsto machine to realize cutting all kinds graphs. And also can program and operate directly on the machine.6.Pre-sale will train and after-sale will track service
Laser-3015-500W Fiber CNC Laser Cutting Machine | ||||
| Main technical parameters of equipment | ||||
| Model | Laser-3015-500W | |||
| X,Y Axial Positioning Accuracy | ±0.05mm/mm | |||
| X,Y Axial Repeat Positioning Accuracy | ±0.03mm/mm | |||
| X,Y Axial Effective Cutting Range | 3000*1500mm | |||
| Maximum Traverse speed | 80m/min | |||
| Accelerated speed | 0.8g | |||
| Drive | alternating current servo | |||
| Rate Power Supply/Frequency | 380v/50Hz | |||
| Structure | steel structure | |||
| Laser Generator (Raycus RFL-C500) Details: | ||||
| Optical parameter | RFL-C500 | |||
| Laser Wavelength | 1070±4 nm | |||
| Output ratings | 500W | |||
| Beam Quality | 2 mm×mrad | |||
| Maximum modulation frequency | 50Khz | |||
| Optical fiber diameter | 25μm | |||
| Output Power Stability | ±1% | |||
| Power | 200~240VAC,50/60Hz | |||
| Power dissipation | 1.6Kw | |||
| Measure(W*D*H) | 448×580×132 | |||
| Weight | Oxygen Gas Max 0.7Mpa | |||

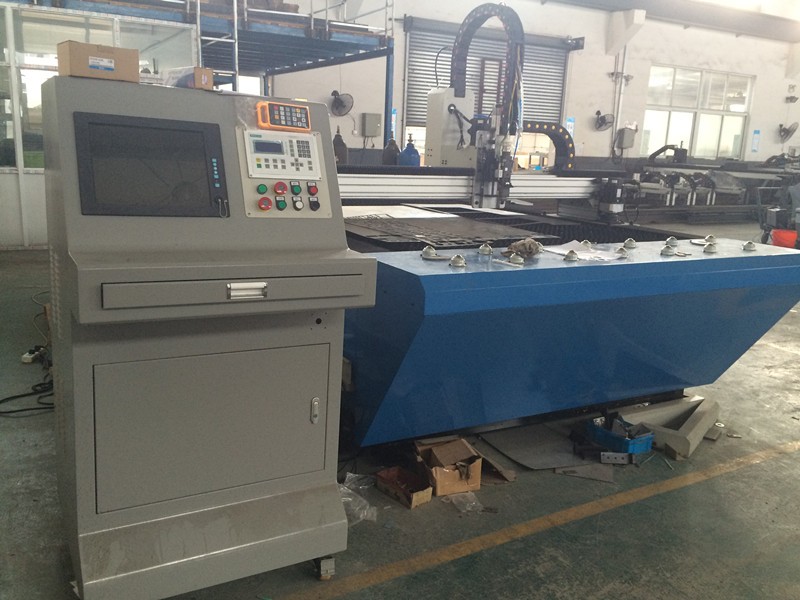

Exhibition Operating Photos:
WHY CHOOSE US?
1.We are manufacturer and export CNC cutting machine over 7 years,very familiar with wholeshipping process,so can lose a lot risks.
2.Experienced technology&quality team,our engineers have over 15 years working experiencein the fields to ensure stable performance and excellent design.Also we can give you best solu-tions if appearing problems after-sale.
3.We only choose high quality and famous materials parts for our machines.
4.Quick response:our customer service is professional and efficient to ensure your questions arereplied within 12 hours.
5.Warranty :1 year warranty from B/L issue date,during the period of time if it appears wrongs innormal operation,will be repaired or replaced free of charge.
Some Problems you may ask:
1. What material the cutting machine suitable for ?Our machine can cut metal plate or circle pipe,like Mild steel,Steel Sheet and Alumium.There are two cutting ways,Plasma andGas.
2.How to operate the machine and software?Easy?It is easy to operate,we will supply you Operation Manul and Software Manual,it will teach you step by step.We also can supplyyou eaching video.
3.How do you do when it appears problem during working?You can send me mail or call to let us know your problem,and send also some pictures.Our engineers will give you a series ofsolutions.If need spare parts,we will send you for free if within 12 months or one year warranty time.If the problem is big,we alsocan send our engineers to your local if nessary.
