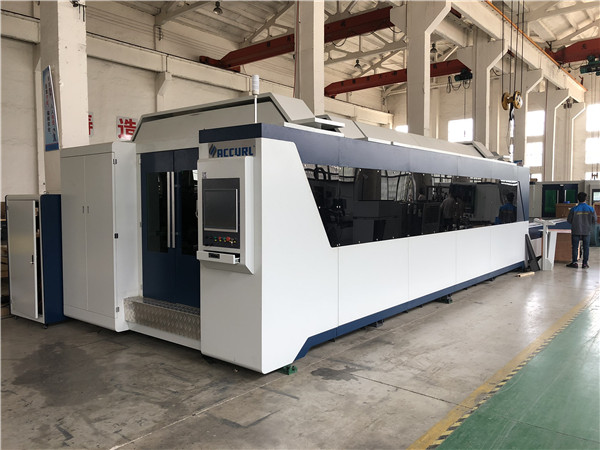

2000w cnc metal fiber laser cutting machine from china for stainless steel

2000w cnc metal fiber laser cutting machine from china for stainless steel

Specifications


Cutting Speed:1~30m/min
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Cutting
Condition:New
Cutting Thickness:1~10mm
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:Baichu Cypcut fiber laser cutting system
Place of Origin:Anhui, China (Mainland)
Certification:CE, ISO, SGS
Material:Metal, aluminum, stainess steel, Carbon Steel
Accuracy:≤ ±0.02mm/m
Laser source:IPG or RAYCUS
Laser wavelength:1064nm
Beam quality:<0.373mrad
Power supply:380V/ 50HZ
keyword:laser cutter
After-sales Service Provided:Engineers available to service machinery overseas



Fiber laser cutting machine


  1. Double ball screw close-loop system and open-type CNC system, ensure high processing accuracy and high working efficiency during high speed cutting.
  2. Standard collocation of 2000W fiber laser generator and optional 500W~3000W fiber laser generator. Low maintenance cost.
  3. Enclosure design conforms to CE standard for reliable and safe processing. Pallet changer working table is convenient for material uploading and unloading and further promotes working efficiency.
  4. Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process, ensuring long-term accuracy and stability of performance.
  5. Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.
  6. Standard collocation of automatic nesting software (including material management and optimized processing technology) and providing with database of process parameters for easy operation and simple management.
  7. Optimized optical lens, specially designed nozzle and sensor technology realize more smooth and more stable cutting. Optional collocation of 2000mm×4000mm, 2000mm×6000mm working table.



Working Area3000X1500mm3000X1500mm4000x2000mm
Laser TypeIPG/ Raycus Fiber laser generator
Laser Power500W
Cutting Thickness0-10mm
Cutting Speed0-30m/min
Laser Wavelength1064 nm
Positioning Accuracy≤ ±0.03mm/m
Re-positioning Accuracy≤±0.02mm/m
Max Cutting Speed30m/min(depending on material and thickness)
Power Supply Rated Voltage3-phase 380V/50Hz
X-axis Stroke3000mm3000mm4000mm
Y-axis Stroke1500mm1500mm2000mm
Z-axis Stroke120mm
Working TableRack working platform
Control SystemBaichu Cypcut CNC control system
Location SystemRed dot indicator
Water Cooling SystemConstant temperature water chiller
Machine Weight2000-8000kg
Machine Dimension3500x1800x1600mm4300x2500x1600mm5000X2900X1600mm
RemarkAutomatic exchange worktable, cover(option)

































Contact Us about fiber laser cutting machine

Please feel free to contact us,we will reply within 24h!



We want to know:

  1. How much the laser power you need
  2. What materials do you need to process
  3. The size and thickness of the material
