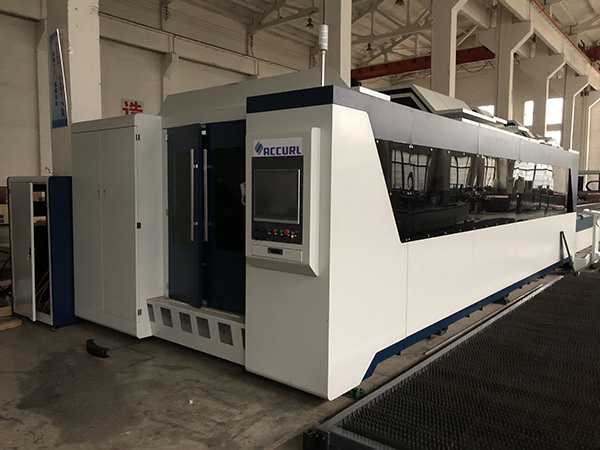

3000W Fiber Laser Metal Cutting Machine with Protective Enclosure and Pallet Changer

Specifications

Cutting Speed:8m/min(Depending on material)
Graphic Format Supported:AI, DXF, PLT
Application:Laser Cutting
Condition:New
Cutting Thickness:0.2-6mm(500w)/0.2-8mm(750w)depending on material
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:perfect professional laser cutting software
Place of OriginAnhui, China (Mainland)
Model Number:1540
Certification:CE, ISO
Product name:1540 servo motor Schneider Electric metal laser cutting machine
working power:380V/50Hz/50A(500W)or 380V/50Hz/60(750w)
Keyword:cutting machine
Model:MFJG4015-500/750
size:5370*24800*1400mm
function:Cutting metal materials
Pulse repeated frequence:0-300HZ
After-sales Service Provided:Engineers available to service machinery overseas

Product Description

product introduction

ECO-FIBER-1530 type metal laser cutting machine adopts high power solid laser technology, which has function and high compatibility CNC software and superior performance CNC power system, which has following advantages:

1, Adopt advanced Russian solid laser core technology, good optical model, stable performance.

2, High efficiency of photoelectric conversion, which is twice that of domestic laser source.

3, Low heat of laser source, only need 5P water-cooling machine, saving the electricity.

4, Gantry flying light path design , light operation, which can save about 40% electricity more than laser lines.

5, Achieve a perfect cutting effect by only blowing compressed air during processing, which can largely reduce costs of auxiliary gas such as Oxygen, Nitrogen about tens of thousands RMB.

6, Equipped with centralized lubrication system , made the machine tool working more stable.

Technical specification

model	ECO-FIBER-1530-500/750	ECO-FIBER-1530-500/750	ECO-FIBER-1530-500/750
medium of laser	ECO-FIBER
cutting area(mm)	2500mm*1250mm	3000mm*1500mm	4000mm*1500mm
max cutting speed(m/min)	8m/min( Depending on material)
cooling way	water cooling
pulse repeated frequence	0-300HZ
min line width	0.12mm(500W)/0.15mm(750W)
cutting thickness	0.2-6mm(500W)/0.2-8mm(750W) (Depending on material)
laser wavelength	1064nm
woring power	380V/50HZ/50A(500W)/380V/50HZ/60A(750W)
continuous working time	24hours
weight	about 2500kg	about 3000kg	about 3500kg
size	3770mm2280mm1400mm	4270mm2480mm1400mm	5370mm2480mm1400mm

Main Characters:

1. Excellent quality of light beam: smaller focus facula, more fine cutting line, higher working efficiency, better processing quality.
2. Highly cutting speed: the 2 times by co2 laser cutting machine under the same power.
3. Very high stability: adopt world top imported fiber laser source , stable performance, the using life of key parts can reach up to 100 thousands hours.
4. Very high efficiency of photoelectric conversion: of which fiber laser cutting machine is 3 times by co2 laser cutting machine, saving the energy and protecting environment
5. Very low using cost: power consumption of whole machine is only 20-30% of co2 laser cutting machine under same power.
6. Very low maintenance cost: no working gas for laser source; fiber transmission, no need the reflecting lens; can save large maintenance cost.
7. Convenient product operation and maintenance: fiber transmission, no need to adjust the optical path.
8. Very strong soft optical effects: compact volume and structure, which is easy for soft processing requirement.
9. The machine tool adopts gantry double driving structure, high damping machine tool bed, good rigid, which can suffer very high speed and acceleration.
10. This model adopts imported AC servo system driver and imported transmission system, the moving structure of machine tool adopts imported gear and rack transmission, linear guide track for guiding, ensuring the high speed,high precision and high reliability of equipment.
11. Rack and guide adopt fullly enclosed protective device, which prevents oil free friction movement and dust pollution, enhances using life of transmission parts and ensures the precision of machine tool movement.
12. Professional laser cutting machine, cnc control system, computer operation, can ensure the cutting quality, and more convenient for cutting work.
