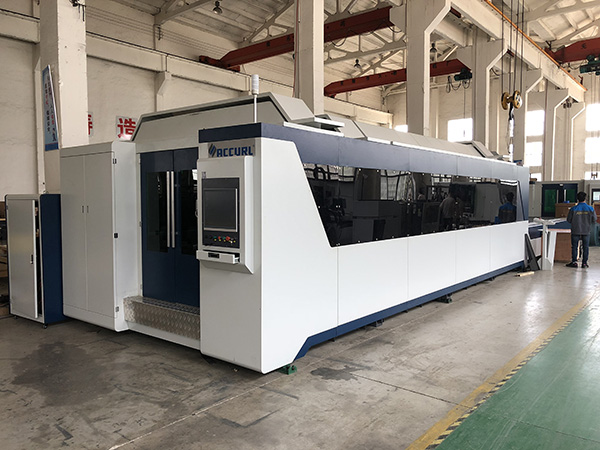

1200W fiber laser cutting machine for stainless steel 3015

1200W fiber laser cutting machine for stainless steel 3015


Cutting Area:3000*1500mm
Cutting Speed:100m/Min
Graphic Format Supported:BMP, DST, DWG, DXF, DXP, LAS, JPG, JPEG, OBJ, ETC
Application:Laser Cutting
Cutting Thickness:6mm/8mm/10mm/20mm
CNC or Not:No
Cooling Mode:Water Cooling
Control Software:Cypcut Laser Cutting Software
Place of Origin:Anhui, China (Mainland)
Brand Name:ACCURL
Certification:CE, ISO, SGS, TUV ,FDA
Warranty:1 Year
Name:Fabric Laser Cutting Machine
Laser power:500W/800W/1200W/2000W/300W/4000W/6000W
Structure Type:Gantry Type
Laser Technology:Laser Control Fault Cutting
Laser Wavelength:1080mm
Lasing Midium::Yvo4
Z Axis Route:120mm

Product Introduction:

Our fiber laser cutting machine collocates with the advanced laser generator which emits laser beam with high energy density. The laser beam is focused on the surface of workpiece as an ultrafine focus facula and causes the irradiated area instantly melted and vaporized. Automatically controls the laser cutter to achieve the cutting mission. The laser equipment is constituted with the advanced laser technology, CNC technology and mechanical technology. It's applicable to processing metal sheets such as stainless steel, carbon steel, copper, aluminum and metal pipes. It has been widely used in plate processing, machinery manufacturing, and precision processing, etc.

Applied Industries:

Our metal laser cutting machine applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances,  gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

Applied materials :

Our laser cutting machine mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and  many kinds of metal materials cutting and so on.

Advantages of Fiber Laser Cutting Machine:

1) Excellent beam quality:  Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 45m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours
4)  High efficiency for photoelectric conversion:  Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
 5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost
6) Easy operations: fiber line transmission, no adjustment of optical path
7) Super flexible optical effects:  Compact design, easy to flexible manufacturing requirements
8)Dual drive:different the traditional one drive machine,dual drive power is more large,speed is more fast and high procession

Technical Parameter:

Laser Power500W/800W/1200W/2000W/300W/4000W/6000W
Laser wavelength1080mm
lasing midiumYVO4
min line width<0.15mm
drivedual drive
max travel speed60m/min
max working area3000*1500mm
Z axis120mm
carbon steel cutting thickness6mm
Cooling WayWater Cooling
Location precision≤±0.05mm
Supporting FormatPLT, DXF, BMP, AI
Worktable max. load1000KGS
Transmission MethodBall Screw Transmission
Table-driven systemJapanese Imported Panasonic Servo Motor & Driving System
Focus MethodFollowing and Automatic Adjust Focus
Control MethodOffline Movement Control
Control software

Cypcut Laser Cutting Software


Our Services

  • 2 year guarantee  periodfor product quality. (man made damaged is negotiable).
  • Lifelong maintenance and spare parts supply.
  • Free design of fixtures as customers required.
  • Free training for machines installation and operation of the staf
