Specifications
Cutting Area:1500mmX3000mm
Cutting Speed:0-40000mm/min
Graphic Format Supported:DXF, DXP
Application:Laser Cutting
Condition:New
Cutting Thickness:depended on laser power
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:Cypcut
Place of Origin:Anhui, China (Mainland)
Certification:CE, ISO
Warranty:3 years
Product name:3d laser cutting machine price
Laser power:500W / 1000W / 2000W / 3000W
Function:Cutting Metal Materials
Type:Fiber Laser Cutting
Color:Required
Lubrication system:Full-automatic
Maximum accelerated speed:1.0G
Power supply:380V/50HZ
Working environment:Temp:0-40℃,humidity:≤80%,No condensation
Graphic format supported:CAD DXF (etc)

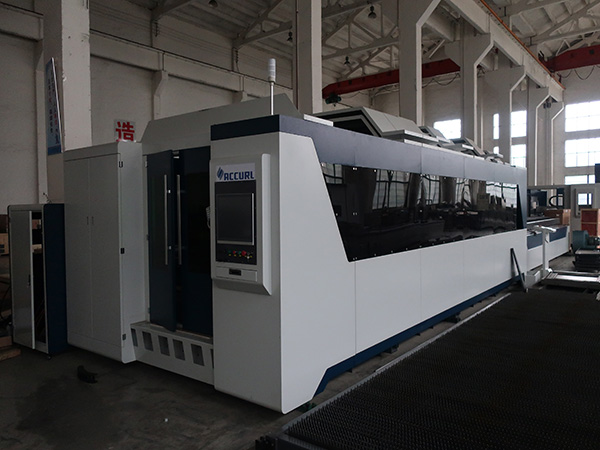

Product Description
This machine adopting high quality fiber laser and high precision WIRON square rail
drivre by helical gear.Controlled by advanced automatiic numerical system.This high
technology machine is a combination of laser cutting and automatic CNC machine.
Such perfect combination guarantee its high speed,precision,efficient and low cost .
So it is a preferred cutting machinefor batch processing of metal material.
Technical Parameters
| Model | ECO-FIBER-1530 SERIES | ||||
| Laser Type | Fiber Laser | ||||
| Laser Wavelength | 1060nm | ||||
| Laser Maximum Power | 500W | 1000W | 2000W | 3000W | 4000W |
| Max. Cutting thickness | ≤8mm | ≤12mm | ≤16mm | ≤18mm | ≤20mm |
| Total Power Consumption | <14KW | <18KW | <22KW | <26KW | <30KW |
| Max.cutting speed | 0-30m/min(Depending on the material and thickness) | ||||
| X, Y, Z Axis Orientation Precision | ≤±0.05mm/m | ||||
| X, Y, Z Axis Repeat Precision | ≤±0.03mm /m | ||||
| Min line width | ≤0.15mm | ||||
| Maximum Empty Running Speed | 120m/min | ||||
| Driving way | Imported servo motor | ||||
| Transmission way | Y-axis import gear rack double driver, X-axis imported ball screw | ||||
| Cooling System | Water Cooling | ||||
| Continuous working time | 24 Hours | ||||
| Power requirements | 380V/3 Phases /50Hz or 60Hz | ||||
| Packing size (L*W*H) | 4500x2300x1800mm | ||||
Features
1.Three "H" and one "L":High speed,High precision,High endurance and Low cost.
2.Easy to operate.And fiber transmission saves the complex laser path.
3.Equipped with automatic discharging system,which saves processing time and cost of
plate.Utilization rate of plate can reach to 95%.
4.Open worktable ,simple operation and small space occupation.
5.HIgh performance cast aluminum guide rail,after finite element analysis,realize highly
accelerated speed circular cutting.
6.High-rigidity heavy chassis,reducing the vibration generated during high-speed cutting greatly.
Our Services
(1) Two year quality guaranty, the machine with main parts(excluding the consumables)
(2) Lifetime maintenance free of charge.
(3) Free training course at our plant.
(4) 18 hours on line service each day, free technical support.
(5) Machine has been adjusted before delivery.We will take machine photos and make
machine working image for you ,after gettingyour agreement ,then we will book a ship.
(6) Providing technical services to the door(We have professional engineers to offer machine
installation commissioning and maintenance).
(7) If you have any problem during your use.you need our technician to judge where the
problem is and help you to solve it. We can provide team viewer and skype with cam till
all of your problems solved.
