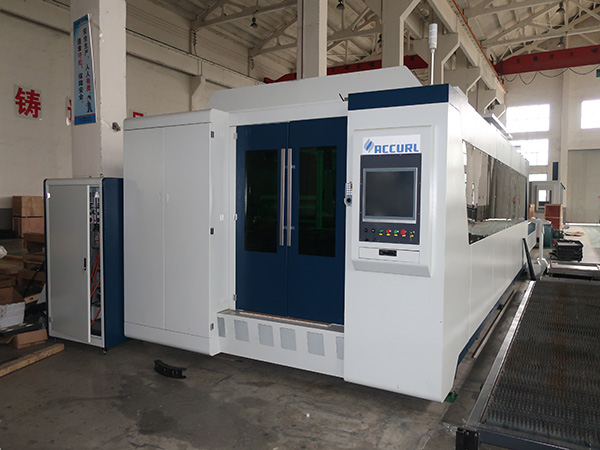

Laser Cutting Machine For Metal 2kW,2.5kW,3kW,4000w IPG fiber Laser cutter

Specifications


Cutting Area:3000mm*1500mm
Cutting Speed:According to the thickness
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Cutting
Condition:New
Cutting Thickness:0.2mm-6mm
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:American Extrotec
Place of Origin:Anhui, China (Mainland)
Brand Name:ACCURL
Certification:CCC, CE, GS, ISO, SGS, 1000 watt laser cutter
Warranty:2 Years
Power:1000W
Machine structure:Dual drive
Total electric power consumed:10kw/h
X axis route:3050mm
Y axis route:1525mm
Z axis route:120mm
Dimension(L*W*H):5000x2500x1800mm
Drive model:Imported servo motor
Maximum positioning speed:100m/min


Cutting Area:3000mm*1500mm
Cutting Speed:According to the thickness
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Cutting
Condition:New
Cutting Thickness:0.2mm-6mm
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:American Extrotec
Place of Origin:Anhui, China (Mainland)
Brand Name:ACCURL
Certification:CCC, CE, GS, ISO, SGS, 1000 watt laser cutter
Warranty:2 Years
Power:1000W
Machine structure:Dual drive
Total electric power consumed:10kw/h
X axis route:3050mm
Y axis route:1525mm
Z axis route:120mm
Dimension(L*W*H):5000x2500x1800mm
Drive model:Imported servo motor
Maximum positioning speed:100m/min

product Description


1.Integrated machine design:left and right collecting drawer on the left and right side of the machine,highly saving space.
2. Stability and reliability of light path system and control system.
3. Fiber laser has high and stable function and lifespan which is over 100000 hours.
4. Higher cutting quality and efficiency with cutting speed being up to 25m/min with perfect cutting edge.
5. High performance reducer, gear and rack; Japanese guide and ball screw.

Advantages of fiber laser cutting machine:

• Excelent beam quanlity:Smaller focus diameter and high work sfficiency ,high quanlity.

• High cutting speed:cutting speed is more than 20000mm/min

• Stable running:Adopting the top world import fiber,stable performance,key parts can reach 100,000 hours.

• High efficiency:for photoeletric conversion efficiency.

• Low cost :Save energy and protect enviroment .Photoelectric convertion rate is up to 25%-30%.Low electric power consumption,it is only about 20%-30% of traditinal CO2 laser cutting machine.

• Low mainenance:fiber line transmission,no need reflect lens,save maintenance cost.

• Easy operations: fiber line transmission,no adjustment of optical path.

• Super flexble optical effects:compact design,compact and easy to flexble manufaturing requirments.

Power
1000W
Cutting area(L*W)
3000mm*1500mm
Cutting thickness
0.2mm-12mm
Total electric power consumed
10kw/h
Laser Cutter Cutting speed
According to the thickness
X axis route
3050mm
Y axis route
1525mm
Z axis route
120mm
X, Y Axis Orientation Precision
±0.03mm/m
X/Y Axis Repeat Precision
±0.02mm/m
Maximum positioning speed
100m/min
Worktable Max Load
900kg
Weight of the Machine
6000kg
CNC system
Baichu or customized
Laser
RAYCUS/IPG Laser
Reducer
Germany Newcut
Rack and pinion
Taiwan YYC
Linear Guides
Taiwan PMI
Cooling system
Water cooling
Laser Cutting head
American lasermech
Appliances
France Schneider
Servo motor
Matsushita
Dimension(L*W*H)
5000x2500x1800 mm



Our Service


1.12 years factory experience machines for metal +many R&D staff+advanced technology of fiber laser cutting machine1.This equipment manufacturer implement one year free service, and three years free maintenance. (excluded consumable parts.)
2. Response within 24 hour by email or calls.(supplier timely response to support technical requirements for buyer, and solves both problems appeared in the process of technology and equipment for the user.)
3. supplier will give an answer within 12 hours when getting buyer's requirement,send relevant technical personnel to the scene for the maintenance of equipment within 24 hours, under the user's cooperation.
4. Engineer can do service for clients in overseas. ( User need to take care of tickets, accommodation, food and cooperating with the engineer we dispatch. )
5.If you are here, you will get 7days for free training. If you are in our factory, we will teach you any basic information about the machine.

FAQ


Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally within 25-35 Working Days Upon Payment of Deposit.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance, West Union or Paypal is acceptable. Payment>=1000USD, 30% T/T in advance ,balance before shippment is preferred.
Q: What's the function for the fiber laser?
A: Fiber laser is only used to process on metal like Stainless Steel, Carbon /Mild Steel, Galvanized Steel etc.Non-metal is not ok.
Q:How much thickness shall we cut?
A: Cutting thickness is related to laser power.300W:1.5mm stainless steel, 3mm carbon steel500W:3mm stainless steel, 6 mm carbon steel1000W:6 mm stainless steel, 14 mm carbon steel
Q: What's the guarantee, in case the machine breaks down?
A: 1 year's guarantee.If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
