Specifications
Cutting Speed:Depends
Graphic Format Supported:AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Application:Laser Cutting
Condition:New
Cutting Thickness:Max 40mm
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:Cypcut
Place of Origin:Anhui, China (Mainland)
Brand Name:ACCURL
Certification:CE, SGS
Product name:tube laser cutting machine price
Materials Thickness:Max 40mm
Laser Power:500w/800w/1000w/1500w/2000w/3000w/4000w
Effective pipe cutting length:3000/6000mm
Pipe outside diameter size:420-200mm
Laser source:IPG/RAYCUS/MAX
Laser head:RAYTOOLS/PRECITEC
Dimensions(L*W*H):5000*3300*2000mm
Weight:4500kg
Repeat Positioning Accuracy:±0.02mm
Product Description

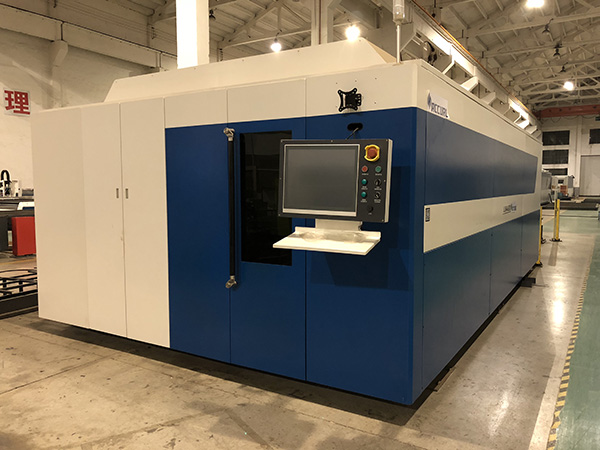

This china hot sale compact tube pipe fiber laser cutting machine price is available to cut most of the metal sheet materials. Integrated design of machines tool accessories, fast disassemble and installation; funnel collection of both left side and right side, space-saving, energy saving, and low cost.
• Safer and more efficient
Protective optical tube laser cutting machine price with totally enclosed laser protective outer garment, cast iron bed, chain exchange platform, professional CNC cutting system, provides users with powerful cutting ability and efficiency.
Meanwhile, the top-class imported parts and strict assembly process guarantee the stable operation of the machine with safe, efficient and high precision.
• Chain-type parallel exchange platform for pipe fiber laser cutting machine
Strengthen the anti-radiation toughened glass, reduce the radiation damage to the human body during processing. Intuitive operation interface, the operation process is very simple and efficient; Real-time monitoring and processing, good experience.
• Big protective cove, safer
Strictly comply with European standards, optional with fully enclosed or open design.
Parameter
Working Area | 1500*3000mm |
Materials Thickness | Max 40mm |
Laser Power | 500w/800w/1000w/1500w/2000w/3000w/4000w |
Laser source | IPG/RAYCUS/MAX |
Laser head | RAYTOOLS/PRECITEC |
Dimensions(L*W*H) | 5000*3300*2000mm |
Weight | 4500kg |
Repeat Positioning Accuracy | ±0.02mm |
Accuracy of Positioning | ±0.03mm |
Max. Movement Speed | 170m/min |
Max. cutting Speed | 80m/min |
Max Acceleration | 1.5G |
Power consumption | <10KW |
| Voltage and Frequency | 380V/50Hz/60Hz/60A(Customizable) |
Our services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas
FAQ
1: I knew nothing about this china hot sale compact tube pipe fiber laser cutting machine price, what kind of machine i should choose?
Easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect suggestions.
2: When I got this tube laser cutting machine price, but I don’t know how to use it. What should I do?
We will send video and English manual with the machine for your reference
3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period.
4: Before sending me an inquiry on our pipe fiber laser cutting machine, it is better for you to provide me the following information
Your metal or non-metal material size. Because in our factory, we have different models according to working area.
