Specifications
Cutting Speed:120m/min
Graphic Format Supported:DXF
Application:Laser Cutting
Condition:New
Cutting Thickness:0-22mm
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:Pui Chu
Place of Origin:Anhui, China (Mainland)
Model Number:RCFPC3015D 3000W
Certification:CE

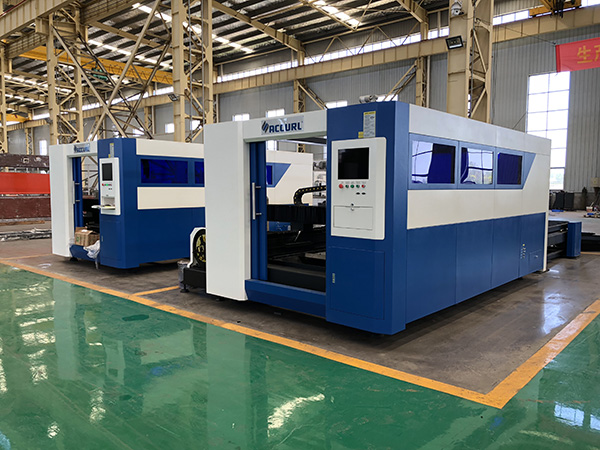

Name:DRC Fiber laser cutter
Product Type:Fiber laser cutter
Machine Type:CNC Lathe Machine
Warranty:12 Months
Lathe Power:3 Kw
Processing Width:3000mm*1500mm
After-sales Service Provided:Engineers available to service machinery overseas
Model | QL FCP3015D | QL FCP4020D | QL FCP6020D |
Processing Width (length × width) | 3000mm×1500mm | 4000mm×1500mm | 6000mm×1500mm |
X-Axis Travel | 3020mm | 4020mm | 6020mm |
Y-Axis Travel | 1520mm | 2020mm | 2020mm |
Z-Axis Travel | 250mm | ||
X Y Axis Positioning Accuracy | ±0.03mm/m | ||
X, Y Axis Repeat Positioning Accuracy | ±0.02mm | ||
X, Y Axis Maximum Positioning Speed | 120m/min | ||
X, Y Axis Maximum Acceleration | 1.5 G | ||
Phase | 3 | ||
Power Supply Rated Voltage | 380V | ||
Frequency | 50Hz | ||
Total Power Protection Rating | IP54 | ||
Laser Type | Fiber Lasers | ||
Works Of Laser | CW QCW | ||
Transfer Fiber Diameter | 100μｍ | ||
Conditioning Frequency | 100KHZ | ||
Cooling Method | Water Cooled | ||
Output Power Stability | ±2% | ||
Standard Output Power | 3000W | ||
Energy Output Adjustment | 5%-100% | ||
Center Radiation Wavelength | 1070-1080nm | ||
Power Supply | 380-400VAC | ||
Cuttable Materials | Stainless Steel, Carbon Steel, Aluminum, Copper, Manganese, Nickel And Other Metal Materials | ||
FAQ
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
3.When is the delivery time?
We will delivery it within 90 days after received your payments
4. How to handle the warranty period?
During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement.
5.Can your company send the technical personnel to our company and direct our workers for free?
When the machine arrive the buyer’s installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
