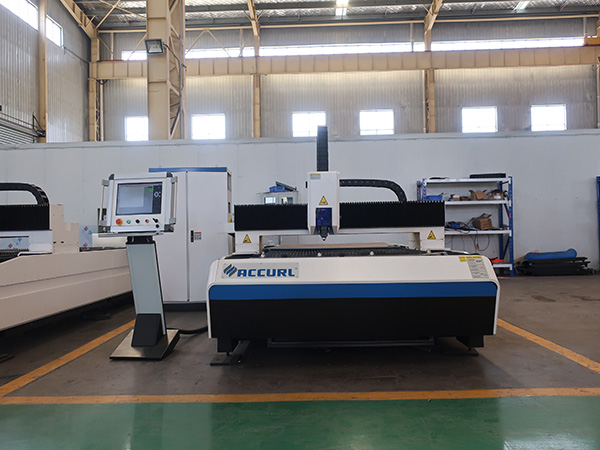

good sale cnc raycus fiber laser cutting machine 1000W

Good Sale CNC Raycus Fiber Laser Cutting Machine 1000W


Cutting Speed:0-200mm/s
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Cutting
Condition:New, New
Cutting Thickness:Materials
CNC or Not:Yes, Yes
Cooling Mode:Water Cooling
Control Software:DSP
Place of Origin:Anhui, China (Mainland), Wuhan China
Model Number:KY-C-FB200/500/1000/2000
Certification:CE, FDA
Product name:fabric laser cutting machine price
Power supply:AC 220V/50Hz
Laser power:150w/300w
Laser tube:Co2 Glass Laser Tube
Table size:1325/1530
Cooling:Water chiller
Keyword:1325 Co2 Laser Cutting Machine
After-sales Service Provided:Engineers available to service machinery overseas

Working Principles

 1. The structure is gantry type with double border and double driving force, with Germany imported speed reducer, rack and pinion, linear guide track, which are all of high precision. Steady transmission, speed acceleration, positioning accuracy-fine, realize horizontal cutting process.

2. The cutting machine’s bed and travelling girder adopt integral welded structure, processed by annealing, rough finish, vibratory stress relief, the stress of welding and working can be eliminated completely. Good rigidity, high precision, keeps indeformable after long term work.

3.The X and Y axis of moving structure adopt imported servomotor with high precision, imported speed reducer and rank and pinion. The Y axis adopts double border double driving structure, so the moving speed is largely improved, acceleration arrives 0.8g, and guarantees high speed and high precision of the cutting machine.

4.Adopt Windows based Special numerical control system for CypCut fiber laser cutting machine, integrate many special laser cutting control functional modules, and has powerful function but simple operation.

5.The cutting head adopts special fiber laser cutting head made in German and capacitive transducer with high precision, sensitive response and reliable stability.

6.Germany imported Electric proportional valve with high precision can accurately control the air pressure of cutting assist gas, acquiring best cutting effect.

Main Features

1. Smooth and fine edge or surface, without subsequent process, small distortion.

2. Higher cutting speed and low cost, stable and safety, fit for continuous manufacturing.

3. Imported servo motor and gearing system to guarantee precise cutting.

4. With independent intellectual property cutting head, with the protection function for laser cutting head.

5. Stable performance, can work continuously in 24 hours.

6. Its screws and rails adopt the fully enclosed protection device to avoid dust pollution, which improves the lifetime of transimission parts and ensures its motion accuracy.

Technical Parameters

Laser   Power150W/300W
Laser   TypeFiber   Laser
Cutting   range3000mm×1500mm/1300mm×2500mm
Repeat   positioning accuracy0.02mm
Laser   HeadAuto   focus
Output   Power150W-300W
Max.   Cutting Speed15mm/min(0.2mm   Carbon steel)
Max.   Working Speed30
Max.   Thickness5-30mm
