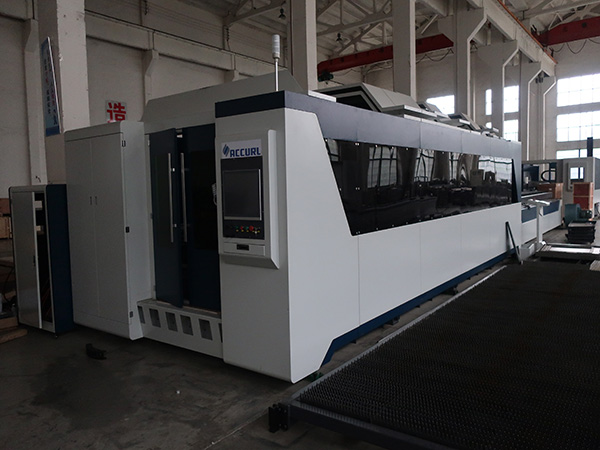

factory price steel fiber cnc 1000W laser cutter cutting machine

Factory price steel fiber CNC 1000w laser cutter cutting machine

Specifications


Cutting Area:1300*2500mm
Cutting Speed:50m/min
Graphic Format Supported:AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Application:Laser Cutting
Condition:New
Cutting Thickness:0.2-3mm/0.2-6mm
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:AU3TECH
Place of Origin:Anhui, China (Mainland)
Certification:CE, ISO, GS, SGS, UL, CCC
Warranty:2 Years
Product name:1mm gold laser cutting machine for make kitchen utensils
Feature:Economic cutting thin metal sheet
Working area:1300*2500mm, 1500*3000mm
Laser power:300W / 500W / 750W
Laser source:Raycus IPG
Type:Fiber Lasr Cutting
Cutting materials:Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
Control system:AU3TECH
Motor driver:Japan Panasonic/Taiwan Delta servo motors and drives
Optional:CYPCUT controller, big power laser source

Main Features


1) Professionnal and high speed ansd precision metal sheet processing.
2) The best of cost performance, it is the first choice for metal sheet high precision cutting.
3) Cutting the stainless steel, zinc be coated aluminum, carbon steel, galvanizes hseet or pipes in high precision.
4) operating convenient and easy, saying materials.
5) Optical fiber transmission flexibility make qperation easy and strong and sturdy High tolerance, Maintenance-free, Production and operation costs very low.

product description:


1.Adopting semiconductor modular and redundancy design, without any optical glass in resonant cavity and without start time, so it is in high stability and doesn’t need adjusting and maintaining, which saves the costs and time. In this point, the traditional laser is not comparable.

2.The output wavelength of fiber laser is 1.06μm, which is a tenth of CO2 wavelength. The output beam is in high quality and power density, so it is easy to be absorbed by metal materials and therefore has great power to cut and weld to make the lowest processing costs.

Model
genius-KJG-1530D (300W/500W/750W)
Boundary dimension
4320*2400*1570mm
Working area
1300*2500mm
Fiber brand
 super laser(Lianpin) fiber generator from Shengzhen
Fiber Laser Power
300W/ 500W/ 750W
Fiber Laser Cutting head
Au3tech Laser Head
Control system
Au3tech Laser Head
Transmission
Germanic  Henric Rack gear transmission
Linear guide
Taiwan PDF linear guide
Max. running speed
30m/ min
Max. Cutting speed
20m/ min
Laser wavelength
1080nm
Position Accuracy
±0.03mm
Reposition Accuracy
0.05mm
Cooling way
Water cooling
Minimum Line width
0.075mu
Electricity
380W/3PH, 50HZ
Machine Weight
3500KG
